Teradata TPT Ingestion

Using TD Wallet for Teradata TPT Source

Prerequisite

Ensure that TD Wallet has been set up for the Infoworks user.

Configuring TPT Source

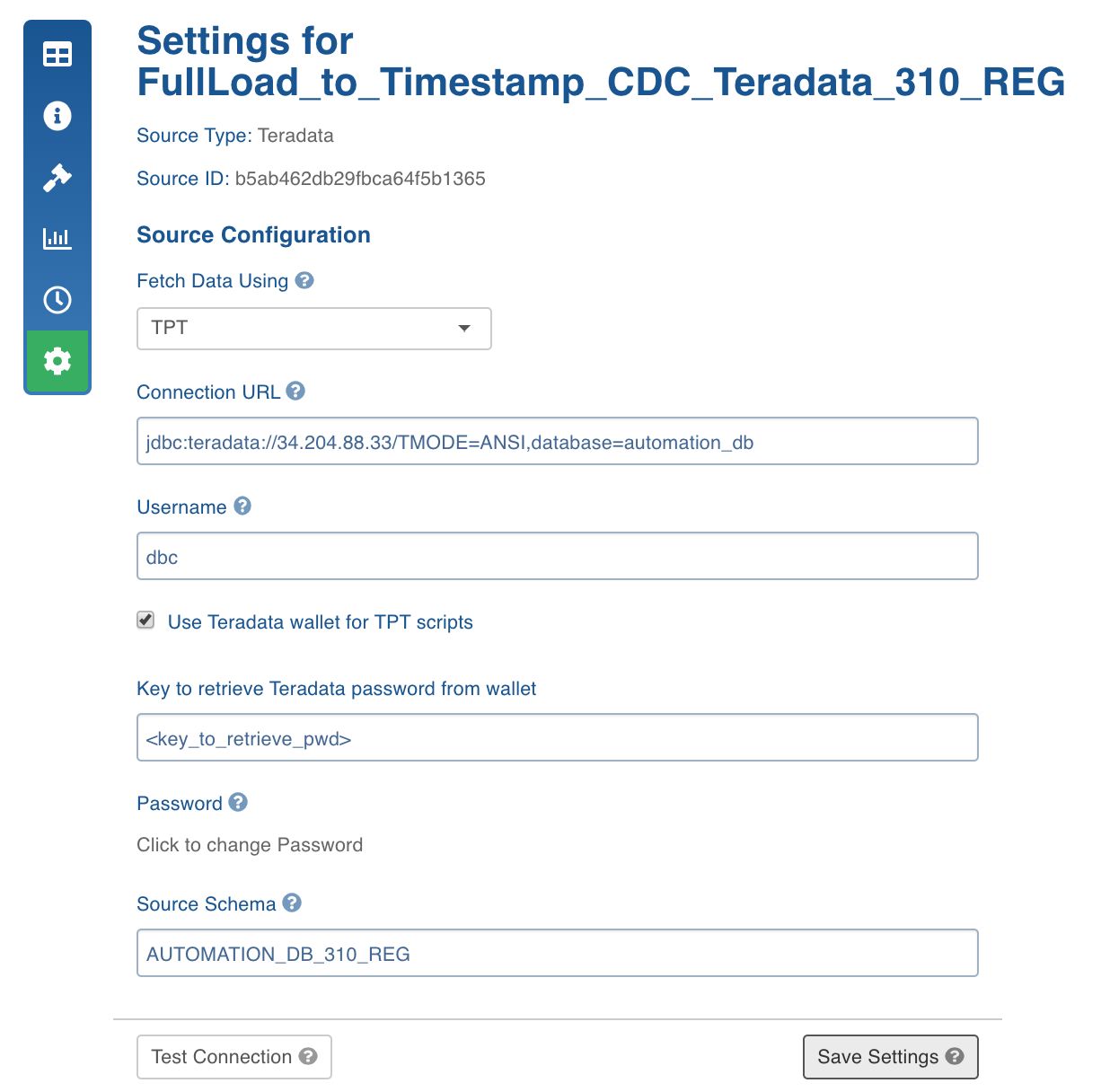

In the Source Settings page for the teradata source, select the Fetch Data Using as TPT.
Select the Use Teradata wallet for TPT scripts option.
Enter the Key to retrieve Teradata password from wallet.

For example, if the TD Wallet is set up and a key, TD_PASSWORD, is added with the database password as the value, when configuring the source for TPT, you can provide TD_PASSWORD as the key to retrieve the password from the Teradata wallet.

Teradata TPT Data Extraction

Following are the steps for data extraction from source for TPT:

Fetching data from Teradata Using TPT - the data from Teradata will be stored onto Hadoop in CSV format.
Processing the CSV file - the CSV file data will be processed (and converted) to store in the user-selected format (ORC/Parquet).

Following are the maintenance options:

Run Delta Stage Job - the incremental delta data from Teradata will be fetched and stored onto Hadoop in CSV format.
Run Delta Process Job - the delta CSV file data will be processed (and converted) to store in the user-selected format (ORC/Parquet).
Run Delta Merge - the available incremental delta files will be merged to the existing data on Hadoop.
Run Full Load - the table will be truncated and reloaded. It works like Initialize and Ingest Now.
Run Post-Ingestion Hook - the UI hook at the table group level to run the Post-Ingestion Hook scripts externally. Usually, the scripts will be executed as part of the ingestion job (full/incremental).
Run Full Load Stage Job - the data from Teradata will be stored onto Hadoop in CSV format.
Run Full Load Process Job - the CSV file data will be processed (and converted) to store in user-selected format (ORC/Parquet).
