Mainframe Data File Ingestion
Mainframe data file ingestion provides the following features:
- Schema crawl
- Data Crawl
- Append Mode
- CDC and Merge
Creating Mainframe Data File Source
For creating a DFI source, see Creating Source. Ensure that the Source Type selected is Structured Files (CSV, Fixed-width, Mainframe Data Files).
Configuring Mainframe Data File Source
For configuring a DFI source, see Configuring Source.
Creating Table and Crawling Metadata
- Click the Source Settings icon.
- In the File Mapping section, click Add Entry to add a folder as a table.

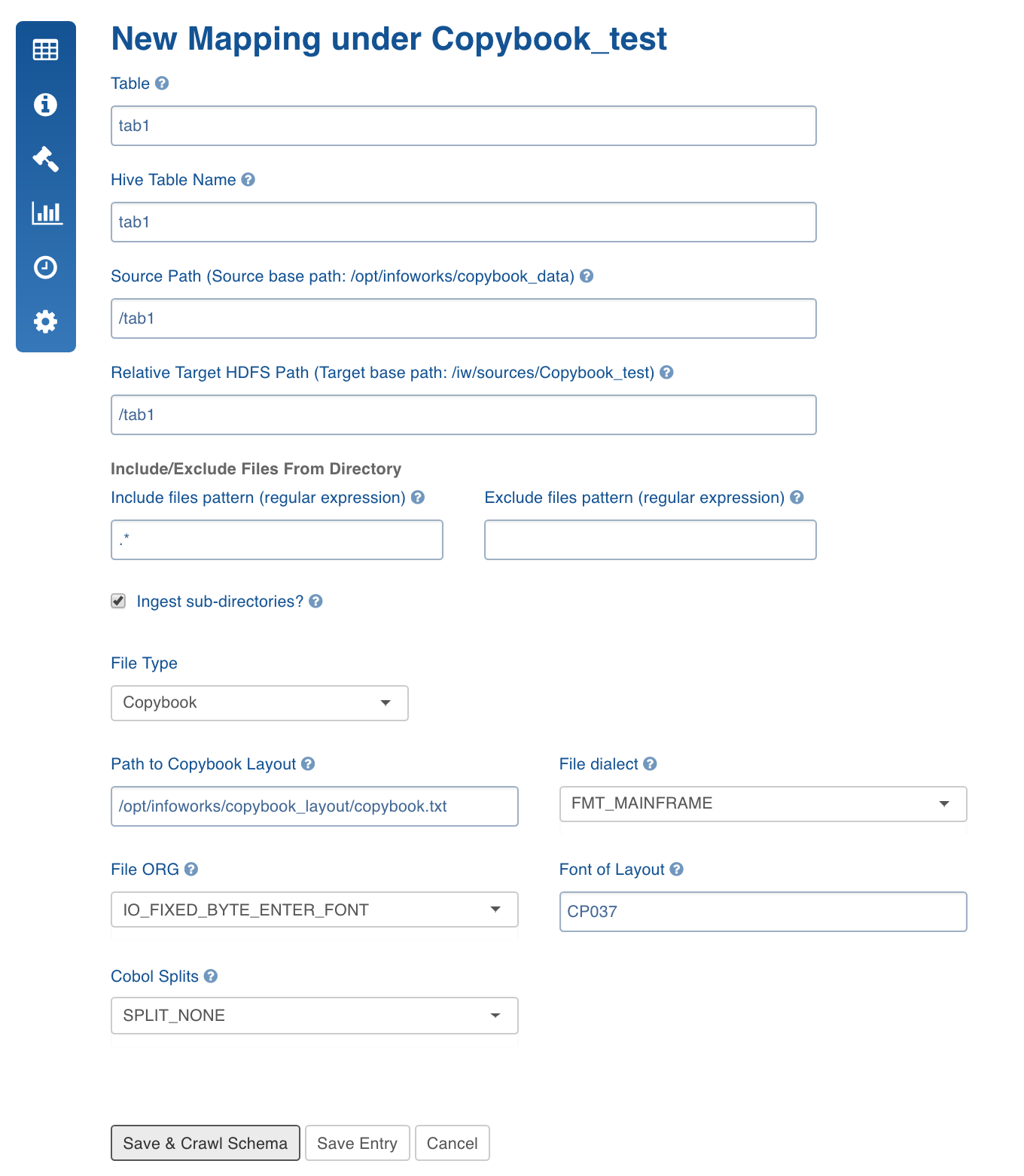

Configure the following table details:
- Table: Table name.
- Hive Table Name: Name of the Hive table that holds the crawled data.
- Source Path: Folder path of the table. This is relative to the source base path.
- Relative Target HDFS Path: Target HDFS path. This is relative to the target base path.
- Include/Exclude Files From Directory: Regex pattern to include or skip files.
- Ingest sub-directories: Specifies whether to crawl the files in the recursive structure of the specified source path.
- File Type: Type of structured file. Select Copybook.
- Path to Copybook Layout: Location of the Copybook layout file which defines schema for the table.
- File Dialect: Cobol dialect used. The default value is Mainframe.
- File ORG: The format with which the records are organized in the files.
- Font of Layout: Font or character set.
- Cobol Splits: Option to split records when the data includes hierarchy.
- Click Save and Crawl Schema. The Edit Schema page is displayed.

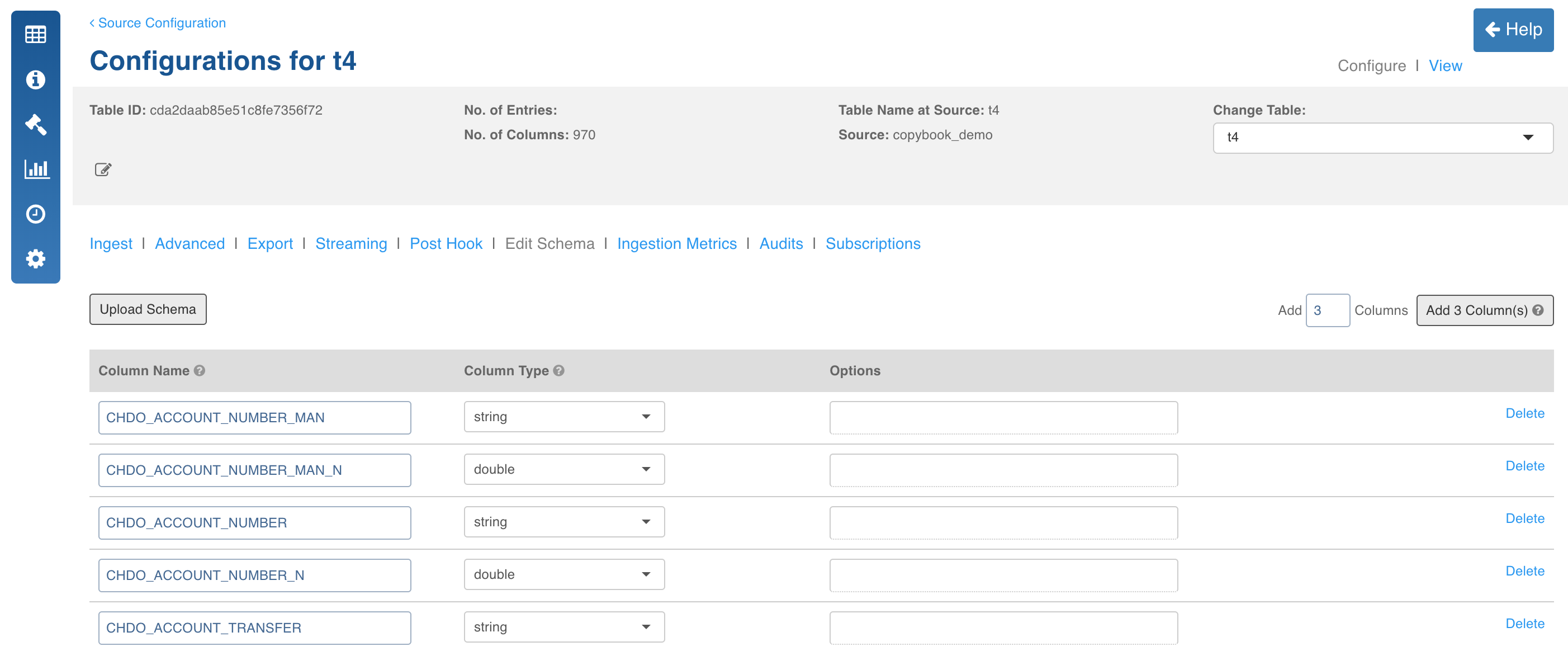

- Edit the schema and click Save Schema.
Configuring Mainframe Data File for Ingestion
For configuring a Fixed-width source for ingestion, see Configuring Source for Ingestion.
