Building Workflow

After creating the workflow using the required tasks, the workflow is ready to be built.

Following are the steps to build a workflow:

  • Navigate to the Workflow Preview page.
  • Click the Build icon. Click Run Workflow. The workflow starts building and you can see the run status under Workflow state.

The color of the tasks notifies the status of each task (success, failed, running, skipped, or queued) as per the color legends shown at the top of the Monitor Run page.

Select any existing builds under Run drop down to view detailed information of the workflow execution.

NOTE: If there are any failed tasks, they will display as Failed (Red). You can click on that failed task to directly navigate to the task, fix it, and click Resume or Restart to continue to the workflow build.

To view the job logs or task logs for each task, click on the task on the workflow execution page.

Click View Task Logs or View Job Logs to view the respective logs.

Build Options

  • The Pause feature is used to stop the workflow build temporarily during maintenance windows.
  • The Resume option displays if you have paused the workflow build and want to continue from where you left off.
  • Clicking the Cancel option stops the workflow build at a logical point of the build.

Viewing Execution Time

Click the Execution Time option to view the time taken to execute each task, as shown below.

You can mouse-over on each task to view more information about that task.

Scheduling Workflow Build

Following are the steps to schedule a workflow build:

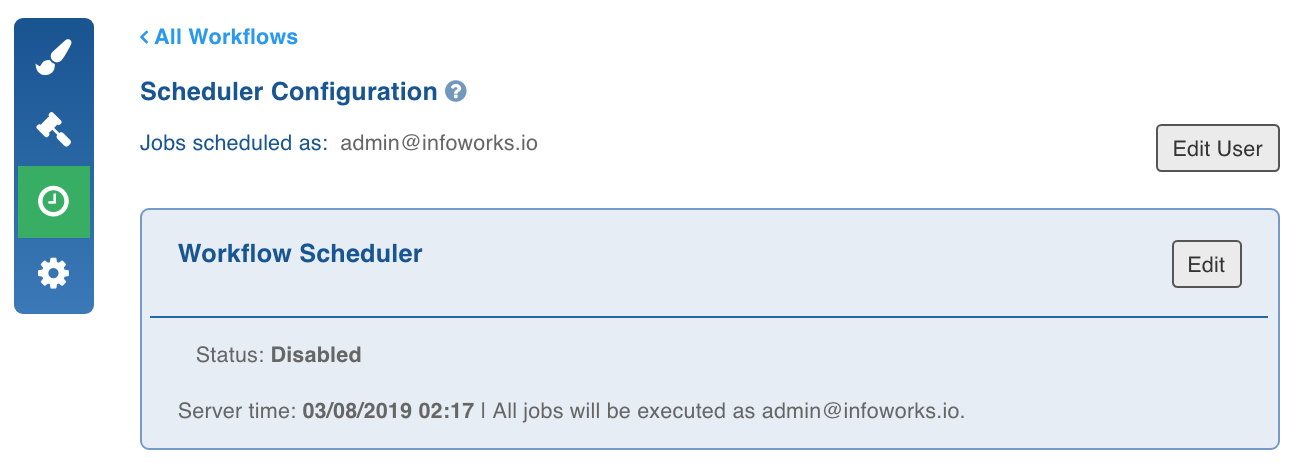

  • In the Workflows page, select the workflow to be scheduled and click the Schedule icon. The following page is displayed:
  • Click Edit User to set the user details and save changes.

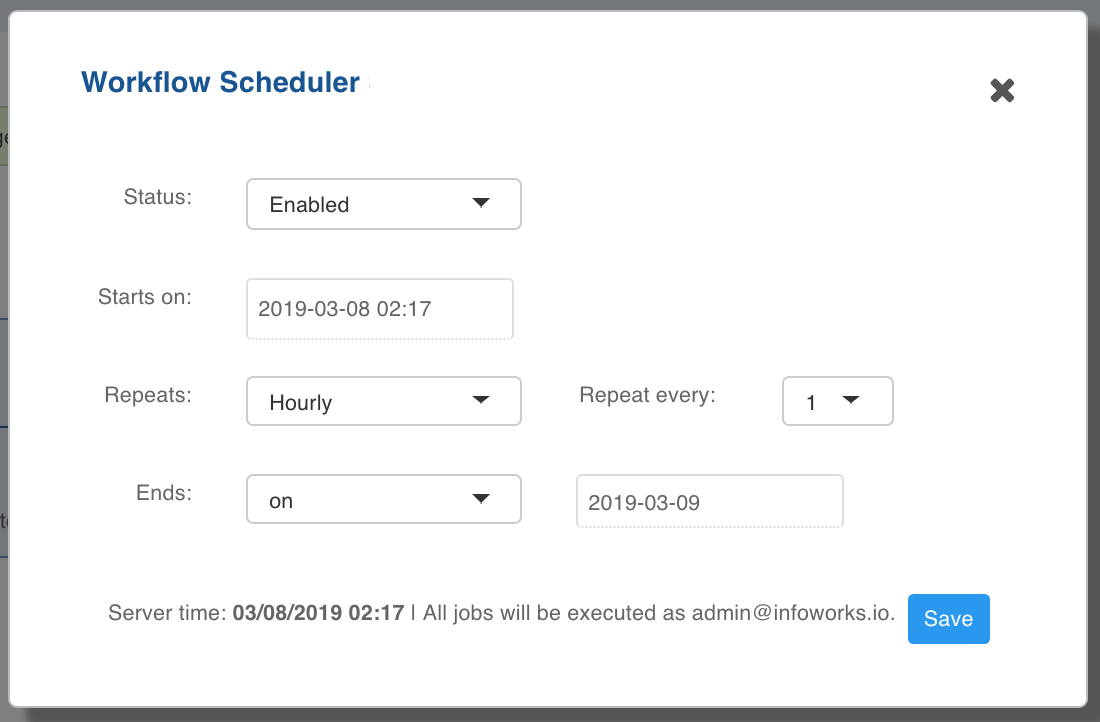

  • In the Schedule Workflow Run page, set the Status as Enabled.
  • Set the build start date and time and choose the repeat option from the.

To edit the schedule user details, click the Set scheduler user here link.

  • Click Save. The workflow build will be scheduled accordingly.
