Delimited File Export

This feature exports pipelines and sources to HDFS or cloud storage in CSV format with UTF-8 encoding.

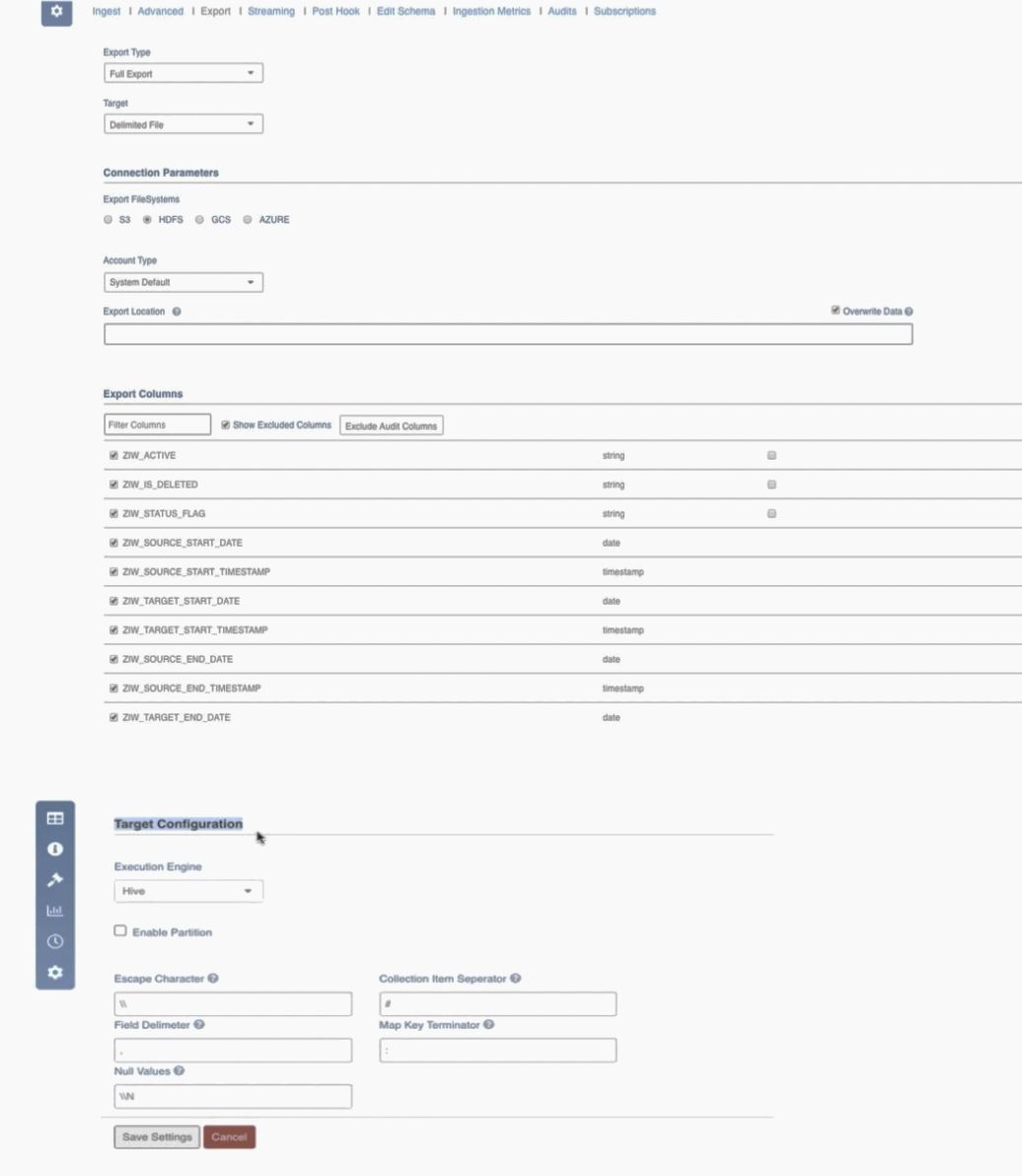

After navigating to the required source, configure the existing tables by clicking the Configure button present to the right of the respective table name. On clicking Export, the Export tab appears which allows configuration of the delimited file export settings.

Field Description

Field	Description
Export Type	Select Full Export/Incremental Export.
Target	Select the database type to be exported as Delimited File.
Export FileSystems	Select the storage system to export data. The options include S3, HDFS, GCS and Azure. For details on each export filesystem, see Export FileSystems.
Account Type	Authentication mechanism based on the storage system.
Export Location	Absolute URI of the location where data will be exported. In the Export Location field, ensure that all tables must have different export locations at a single point of time.
Overwrite Data	You must select the Overwrite Data checkbox to forcefully overwrite the existing target path. This must be set at table level. The default value is false.

The final path of export will be a sub directory under the specified path based on the export type. For full export, the final path will be s3://bucket/path/to/export/full/csv. For incremental export, the final path will be s3://bucket/path/to/export/cdc/csv/, where timestamp refers to export job time.

NOTE: Full export overwrites existing full export data in the same path, while incremental data always writes to a new path using the timestamp in the path.

Field	Description
Export Columns	List of columns to be exported.
Execution Engine	Option to select the execution engine. The valid options are Hive and Spark. NOTE: For Spark Execution Engine, add the following advanced configurations: quote_char_csv_export : Default value is “ . This sets a single character used for escaping quoted values, where the separator can be part of the value. To turn off quotations, you must not set the value to null, instead set it to empty string. char_to_escape_quoting_csv_export : Default value is \ . This sets a single character used for escaping the escape for the quote character. header_spark_csv_export : Default value is true. This uses the first line as names of columns. empty_value_csv_export . Default value is “” . This sets the string representation of an empty value. escape_quotes_csv_export : Default value is true. This sets a flag indicating whether values containing quotes must always be enclosed in quotes. encoding_csv_export : Default value is UTF-8. This decodes the CSV files by the given encoding type. compression_csv_export : Default value is none. This sets the compression codec to use, when saving to file. This may also be one of the known case-insensitive shorten names such as none, bzip2, gzip, lz4, snappy or deflate. date_format_csv_export : Default valus is yyyy-MM-dd. This sets the string that indicates a date format. timestamp_format_csv_export : Default value is yyyy-MM-dd HH:mm:ss. This sets the string that indicates a timestamp format. ignore_leading_whitespace_csv_export . Default value is true. This sets a flag indicating whether or not leading whitespaces from values being written, must be skipped. ignore_trailing_whitespace_csv_export : Default value is true. This sets a flag indicating whether or not trailing whitespaces from values being written, must be skipped.
Enable Partition	Option to enable partitioning. This is available only for the Hive execution engine.
Enable Text Enclosing	Option to enclose text with " character. This is available only for Spark execution engine.
Select Partition Column	Option to select partition column when partitioning is enabled. This is available only for Hive execution engine.
Field Delimiter	Single character input for field delimiter. The default values depend on the Execution Engine selected. For Hive: The default values is , For Spark: The default values are as follows: is ,
Escape Character	Single character input to escape other control characters in column values. The default values depend on the Execution Engine selected. For Hive: The default value is \ For Spark: The default value is \
Collection Item Separator	Field separator for struct, array and map complex data types. This is available only for Hive execution engine. The default value is #
Map Key Terminator	Key value separator for map data type. This is available only for Hive execution engine. The default value is :
Null Values	Substitution for null column values. The default values depend on the Execution Engine selected. For Hive: The default value is \N For Spark: The default value is \N

Limitations

Partition Key: Only one partition key can be used per export job. The data type of the partition key column must be primitive and not complex (like map, array). Number of partitions supported depends on the Hive settings. For more details, see the hive.exec.max.dynamic.partitions.pernode configuration.
Default Partition Name: All data with null partition values will be moved to a directory with default partition name. Special characters must be avoided - semicolons will be removed. The default value is HIVE_DEFAULT_PARTITION.
Delimited file parameters: The parameters like field separator, escape character, etc must be a single UTF-8 character; multiple characters are not supported. Back slash in these options must be escaped. Quote characters are not supported, but quotes can still be added as part of the pipeline.

Spark Configuration

Add spark_config_path = {SPARK_HOME}/spark-defaults.conf in the advanced configurations. SPARK_HOME value can be obtained from the {IW_HOME}/bin/env.sh file.
Add {SPARK_HOME}/jars/*: at the beginning of iw_export_classpath, in the {IW_HOME}/conf/conf.properties file.
Spark is optimized for parquet on EMRFS. To support this, add spark.sql.hive.convertMetastoreOrc as false in the {IW_HOME}/conf/spark-export.conf file.
For addition of any extra spark configuration, navigate to {IW_HOME}/conf/spark-export.conf file, and edit the same by adding the required configuration parameter.

Troubleshooting

Troubleshooting Delimited File Export

IW Constants and Configurations

When trying to export tables with the same export location, the job might fail or succeed based on the overwrite parameter.

NOTE: APPEND_HEADER configuration is not supported for delimited file export on EMR and Azure HDInsight._ _

WARNING: All existing data will be deleted.

Export FileSystems

S3

For S3 export filesystem, provide the following details:

Account Type: Authentication mechanism based on the storage system. The System Default option uses the credentials globally available in the system or available to the Infoworks user. Before selecting the System Default option, you must set up the access key as fs.s3.awsAccessKeyId and secret key as fs.s3.awsSecretAccessKe ,for EMR in the hdfs-site.xml file of the Hadoop configuration, with the corresponding values for the bucket to which the data must be exported. For all other Hadoop distributions, set access key as fs.s3a.access.key , and secret key as:fs.s3a.secret.key . If AWS Key Based is selected, provide the Access Key and Secret Key. The keys must have write access to the given bucket. For details on the keys, see Managing Access Keys for IAM Users.
Export Location: Absolute URI of the location where data will be exported. This path must contain the file scheme, bucket name (if applicable) and absolute path to the export directory. For example, s3a://bucket/path/to/export

HDFS

For HDFS export filesystem, provide the following details:

Account Type: Authentication mechanism based on the storage system. The System Default option uses the credentials globally available in the system or available to the Infoworks user.
Export Location: Absolute URI of the location where data will be exported. This path must contain the absolute path to the export directory. For example, hdfs://namenode-ip.fqdn/path/to/export

GCS

NOTE: You must have a GCS storage account created to begin this process. To create a new GCS account, see Creating and Managing Projects.

For GCS export filesystem, provide the following details:

Account Type: Authentication mechanism based on the storage system. The System Default option uses the credentials globally available in the system or available to the Infoworks user. If GCS Service Account Credential is selected, provide the path of the Service Account Credential File. For example, /iw_home/infoworks/path/to/file
Project Id: The project ID of the GCS account. For details on obtaining project ID, see Identifying projects.
Export Location: Absolute URI of the location where data will be exported. This path must contain the bucket name (if applicable) and absolute path to the export directory. For example, gs://bucket/path/to/export

NOTE: Ensure to provide storage permissions for Dataproc and target bucket for given credentials and user.

Azure

For Azure export filesystem, provide the following details:

Account Type: Authentication mechanism based on the storage system. The System Default option uses the credentials globally available in the system or available to the Infoworks user.

If WASB is selected, provide the following:

NOTE: You must have an Azure WASB storage account created to begin this process. To create a new WASB account, see Create Storage Account.

Account Name: Account name for the desired storage account.
Access Key: Access key with write access for the storage account. Navigate to the desired storage account. In the left panel, go to Access Keys. Copy value from either Key1 or Key 2 fields. For more details, see Managing Storage Account.
Container Name: Name of the desired container in the storage account. For more details, see Creating a Container.
Export Location: Absolute URI of the location where data will be exported. This path must contain the container name and absolute path to the export directory. For example, wasb[s]://@.blob.core.windows.net/path/to /export,

If ADLS Gen1 is selected, provide the following:

NOTE: The ADLS account name must be adls gen 1.

Authentication End Point: Provide the authentication end point as OAuth 2.0 token endpoint. For details, see Getting OAuth 2.0 token endpoint.
Application Id: Application ID of the desired directory.
Client Secret: Client secret to authenticate the application.

For details on obtaining Client Secret and Application ID, see Creating Azure Active Directory Application.

Export Location: Absolute URI of the location where data will be exported. This path must contain the absolute path to the export directory. Following are some examples, adl://gen1_accountname.azuredatalakestore.net/path/to/folder/.
