Creating Cube

Following are the steps to create a cube:

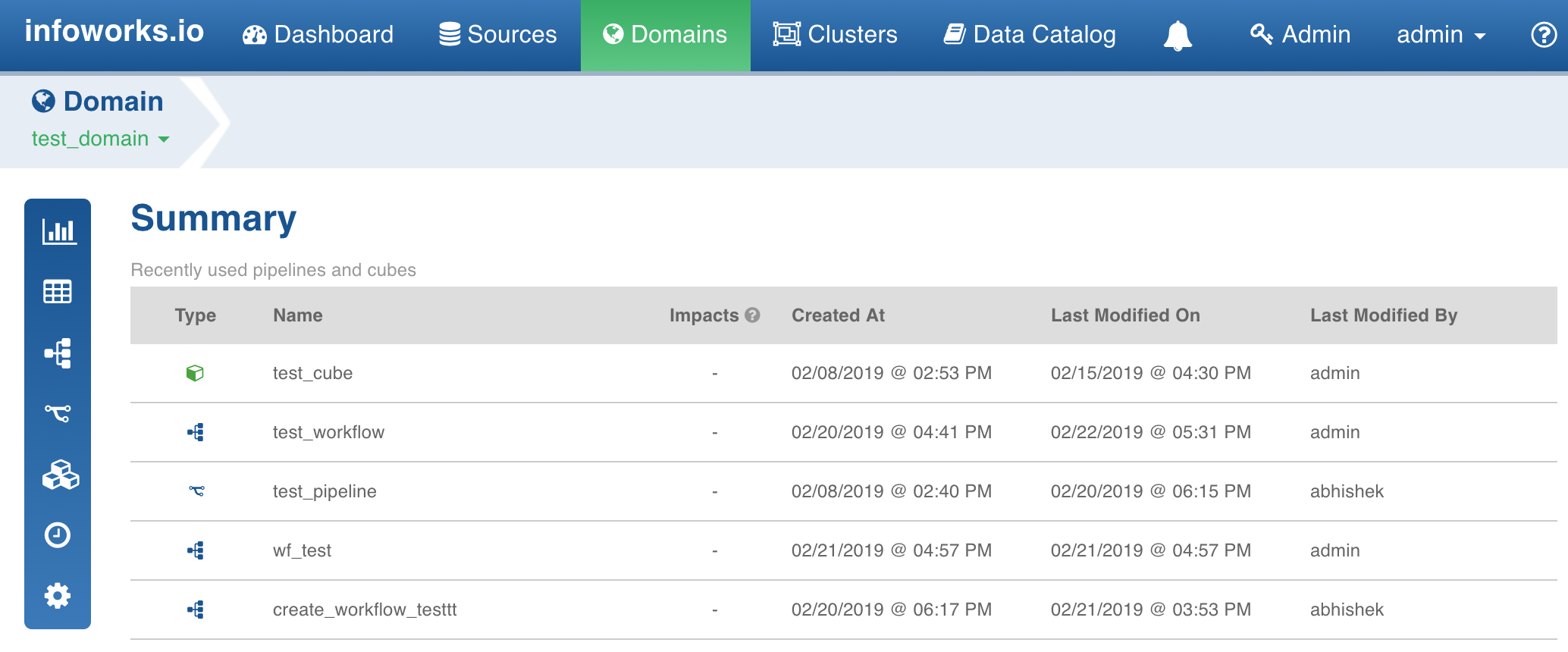

• Click an existing domain which has access to source tables and the pipeline tables which are required for the Cube design, which are typically facts and dimension tables. OR, Create a new domain and add the required source tables to it. The domain page containing multiple sources available to the pipelines and cubes in that domain is displayed as shown below.

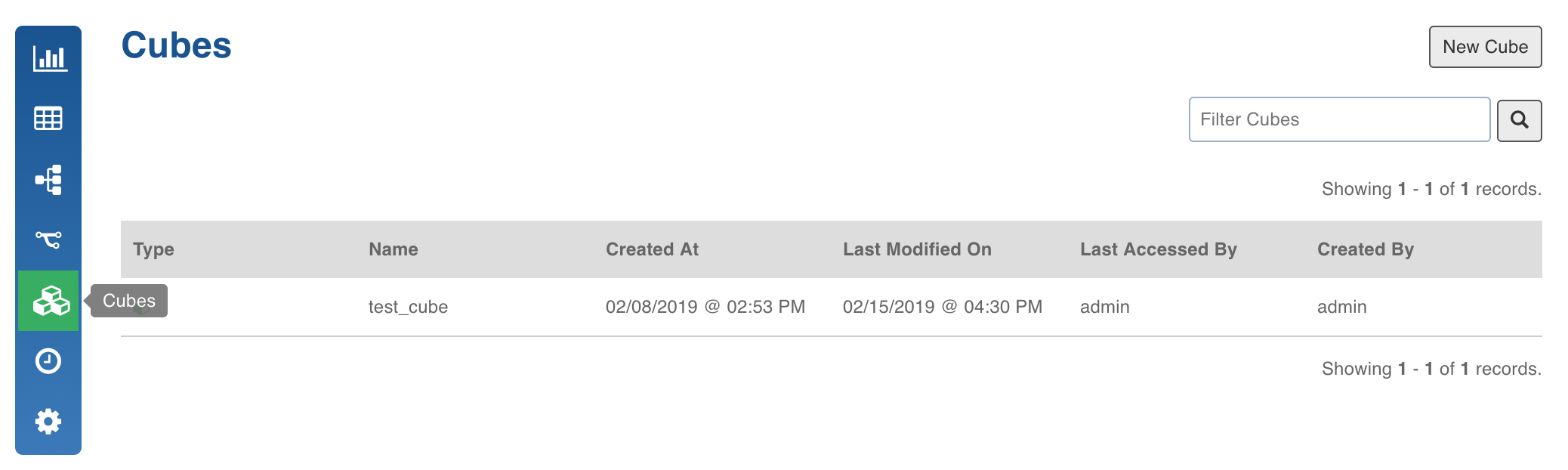

• Click the Cube icon. The Cubes page is displayed with a list of existing cubes.

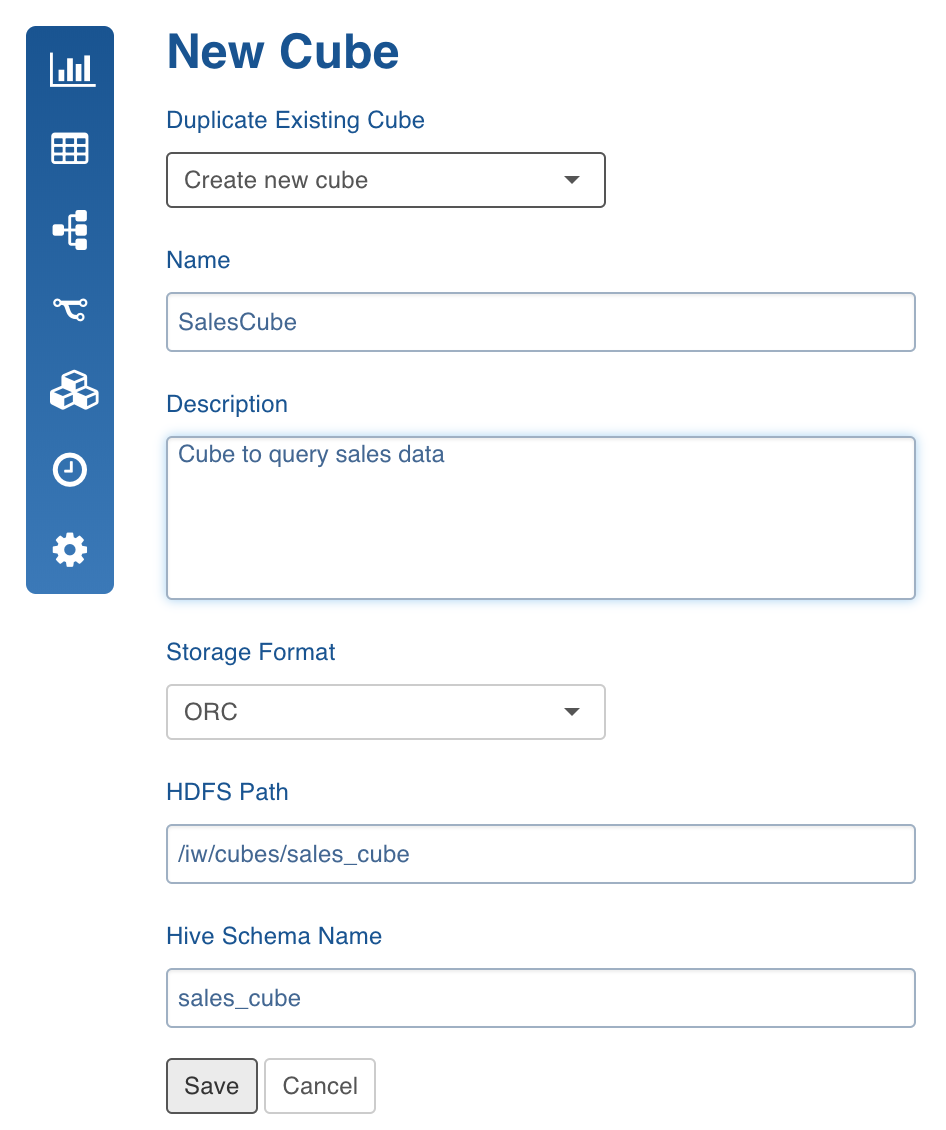

• Click New Cube. The following page is displayed.

Enter the following details:

• Name: Enter the cube name.
• Description: Enter description, if required.
• Storage Format: Select the required format in which the cube tables must be stored (ORC or Parquet).
• HDFS Path: The star schema for the cube model will be saved on HDFS.
• Hive Schema Name: Enter the schema name where the tables will be stored.
• Click Save. The list of cubes created in the domain will be displayed.
