Pipeline Targets

Target

Data Transformation materializes the data as a flattened Hive table after performing all the operations like joins, aggregations, and unions on the big data sources defined by the pipeline design. The target node is used to specify the details of the table such as its schema name, table name and HDFS location.

Following are the steps to apply Target node in pipeline:

Double-click the Target node. The Properties page is displayed.

NOTE: Any target column, apart from system generated audit columns, cannot start with "ziw".

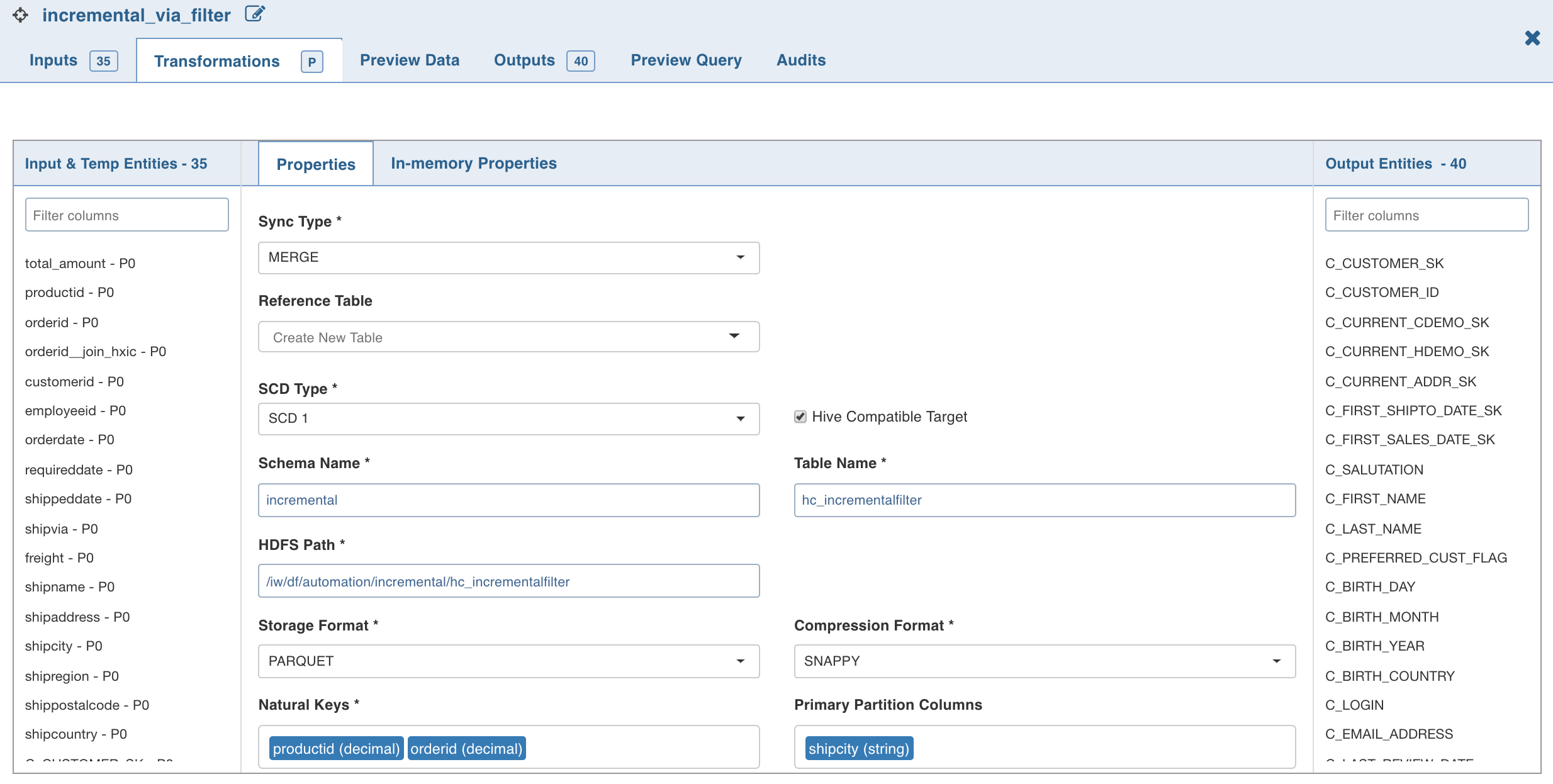

Click Edit Configurations . The following page is displayed.

Edit the following properties and click Save:

Sync Type determines if existing data, if any, will be overwritten or will be updated.

You can also select Append to append the data of one pipeline target to already built pipeline target. This can be achieved by giving a reference table in pipeline target.

On changing sync type to append/merge, a dropdown for reference table appears. All built pipeline tables are part of the reference table option. On reference table selection, properties such as schema name, table name, HDFS path etc, are visible. The appendable/mergeable target will by default have these properties of reference table. These properties are non-editable from the target node.

There is also a separate section for column mappings of reference table and target node. In mapping section, all columns from reference table are listed on the left-hand side while all columns from target node are listed on the right-hand side.

You can sort the order of the columns (using the edit feature) from the target node if the order of target columns does not match with the order of columns of reference table. Number of target columns needs to be greater than or equal to number of reference table columns. All unmapped columns from target table are excluded automatically on saving. All audit columns must be mapped to respective audit columns. For all other columns, data type of mapped columns must match.

If the column name in target is different than the corresponding mapped column of reference table, user gets a notification for renaming the column and on clicking OK , column name in the target node is renamed. On saving the mapping section, schema of the target table is changed appropriately to match the schema of reference table.

SCD Type includes the following options:

SCD1/SCD2: SCD1 (Slowly Changing Dimension type-1) and SCD2 (Slowly Changing Dimension type-2) are the two models supported for merge sync type. SCD1 maintains only the most updated records (no history) in the table while SCD2 maintains history also. For mergeable target you can select reference table of type SCD1 or SCD2 depending on the requirement.

SCD2 (slowly changing dimension type 2): To maintain history, different levels of granularity are supported like, Year, Month, Day, Hour, Minute and Second.

For example, for a record if you configure SCD2 granularity as Day, the database maintains only one entry per day (most updated). If a new update is received the next day (after the period of the granularity), a history record will be maintained for that update. To maintain all history, set granularity level as Second. By default, the granularity level used is Second.

Following are the three audit columns used in SCD2:

ZIW_ACTIVE: The value is true for all active records and false for history records.

ZIW_TARGET_START_TIMESTAMP: Maintains start timestamp of a record.For example, for Day level granularity, the value is the first second of the day, and for Hour level granularity, the first second of the Hour.

ZIW_TARGET_END_TIMESTAMP: Maintains end timestamp of a record. For active records the value is an INFINITY timestamp whereas, for non-active records the value is the last second of the day/hour/month etc.

Granularity includes options like Second/Minute/Hour/Day/Month/Year.
Configuring SCD2 Granularity: You can also set the granularity level using pipeline configuration with the key dt_scd2_granularity.
Non SCD 2 Columns: All columns will be considered SCD2 columns by default. Select the columns to be excluded from SCD2. NOTE: These settings must be performed in the reference pipeline and not in the merge target pipeline.
Storage Formatand Compression Format: Select the required storage format ( ORC or Parquet ). For ORC, the compression format is ZLIB . For Parquet , the compression format is SNAPPY .

NOTE: Compression logic can be selected based on compression format. You must be aware of the implication of compression mechanism used with the storage format selected. There are certain compression logics which are not performant on storage format.

Natural Keys is a set of columns which uniquely identify a record. The user can use a derive with iwuuid() as the derive expression if none such exist.
Number of Bucketsand Bucketing Columns : Custom Bucketing configuration is used for changing bucketing logic. By default, logic for bucketing is based on natural key columns selected. But if you are aware of the join columns used that are not same as natural keys, then you can change bucketing columns. This improves the performance. If this section is left blank, internally, Infoworks clusters data in table based on natural key columns selected. Enter the required values appropriately.
Primary Partition Columns is an optional field. A column which has a low cardinality whose values do not get updated is a good candidate for primary partitions. It can help speed up a query which uses this column as a filter or joining condition.
Index Columns is a set of columns that enable improved query processing time. Indexing uses bloom filters in ORC files to index any column type. When a target is created in ORC format, the system passes columns in index columns to create index in ORC file.

WARNING: Some data type degrades performance of queries on the indexed columns.

Sort By Columns are the columns by which the columns are sorted in each cluster.
Delete Records Column is a column that represents a value true for records that are considered as deleted. The column selected in the Delete Records Column drop-down list will be automatically mapped to ZIW_IS_DELETED audit column.

NOTES:

The ZIW_IS_DELETED audit column will be available in the target output only if a column is selected in the Delete Records Column drop-down list.
If two or more existing artifacts share the same target HDFS path, the build will fail unless you change the target configuration.

During Pipeline build, existing target tables are available for external tools.

In case of using any pipeline targets in APPEND mode, the set detect_duplicates_in_data_fetch to true advanced configuration must be set at source level before running CDC.

Limitations

Changing the values of Primary Partition Columns and Bucketing Columns for records is not supported. Any change in primary partition or bucketing or natural key will result in insertion of new record in Merge mode for SCD1/SCD2.
Spark does not provide APIs to handle Compression Formats. It only supports SNAPPY.
SCD2 target does not support complex datatypes like map, array union, etc.

Spark Hive Compatibility

Spark bucketing semantics are different from Hive bucketing semantics. This behaviour can be controlled by the Hive Compatible Target check box.

Infoworks Data Transformation handles these differences using the following methods:

Hive Compatible Targets

No bucketing will be applied. Bucket columns will be used as secondary partition columns.
ZIW_SEC_P column will be automatically created.
ZIW_SEC_P value is calculated as hashcode(bucketcolumns)%noofbuckets

NOTE: Hive compatible target has a limitation in handling partition values with space in Merge Mode.

Non-Hive Compatible Targets

Spark bucketing will be applied. These targets will not be readable by Hive.

Spark SQL and Hive SQL expressions are compatible for majority of cases. However there are some differences. Some of the known issues are captured here:

Hive supports MONTH on decimal type and date type, however, spark supports only on date type.
Hive variance function aliases to var_pop while spark aliases to var_samp.
Hive union vs spark union has different behaviour.

For example select col1 from tab1 union all select col1 from tab2. If tab1.col1 is decimal(7,2)and tab2.col1 is decimal(38,0),

Hive target col is decimal(38,0) (rounds off any decimal value to nearest integer).
Spark target col is decimal(38,2) (no round-off).
iw_rowid function returns different rowid for spark vs Hive when decimal values are present in natural keys.
Spark CAST as timestamp expects epochSeconds while Hive cast expects milliseconds.

See the Spark SQL documentation for any issues.

Compatibility Matrix

Field	Targets created by Spark execution engine	Targets created by Hive Execution Engine	Ingestion Sources
Spark Engine Read?	Yes	Yes	Yes
Spark Engine Write?	Yes	No	NA
Hive Engine Read?	Yes (if Hive compatible target)	Yes	Yes
Hive Engine Write?	No	Yes	NA

Additive Schema Handling

If only new columns have been added to a source table or pipeline, additive schema handling alters the table to add these columns at the end of the table. Additive schema handling is supported only in the Merge mode.

The additive schema changes are displayed in build log summary of pipeline.

Limitations

The rows for which the new column values are not defined will be assigned as null.
Data type of additive columns can only be primitive.
Additive columns cannot be part of target properties like natural keys, primary partition columns, etc.
Build time of additive schema handling in merge mode is comparatively higher.
Additive schema handling will be executed only when no Reference Table is set for Merge Mode in the Target Properties window.
Additive schema is currently not supported for MapR-DB targets.

MapR-DB Target

Building a MapR-DB target writes data to the MapR-DB which improves the overall performance in terms of build time as compared to export job.

NOTE: This node is compatible only with Hive execution engine.

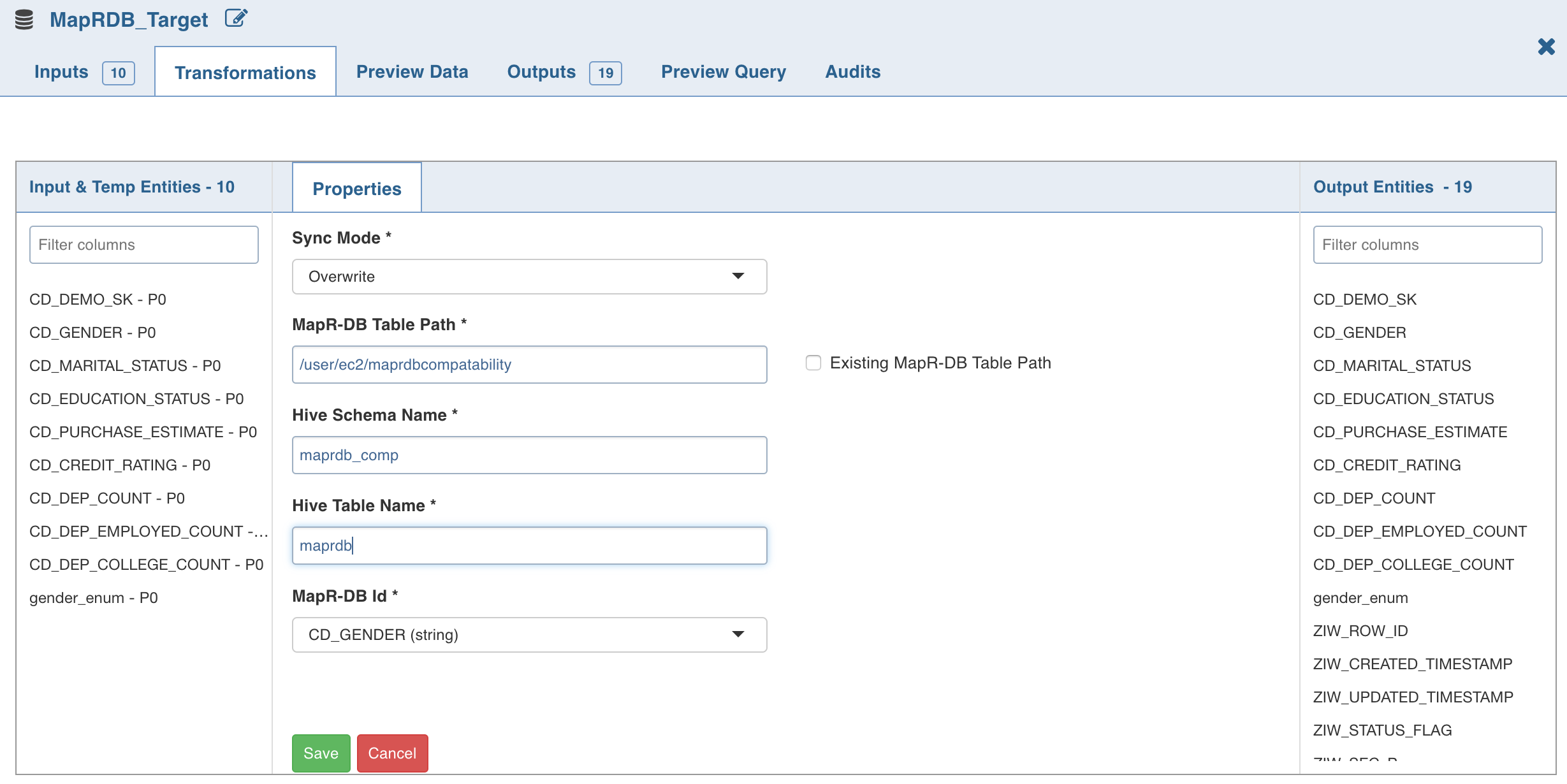

Double-click the MapR-DB Target node. The Properties page is displayed.
Click Edit Configurations .

Following are the steps to apply MapR-DB Target node in pipeline:

Enter the following details:

Sync Mode: It includes the following options:
Merge: Inserts into MapR-DB based on the ID column values. If ID value already exists, MapR-DB updates existing values with new values.
Overwrite: Truncates and reloads data if the MapR-DB table is created by the Infoworks, else only Hive metadata layer is redefined. This is achieved through Hive by using managed/external Hive table.
MapR-DB Table Path: MapR-DB table name.
Existing MapR-DB Table Path: If this field is enabled, the MapR-DB will not be deleted. Else, if the MapR-DB table is created by the Infoworks, the table will get deleted and created again in Overwrite mode.
Hive Schema Name: Schema in which the Hive table is present.
Hive Table Name: Projection over MapR-DB table.
MapR-DB Id: The ID value present in source or derived by the user.

NOTE: The data type must be a string.

Click Save.

For details on data types supported, see the MapR-DB Datatypes section.

Limitations

Additive schema is currently not supported for MapR-DB targets.
Decimal datatype is not supported, it must be changed to double.
Hard delete is not supported.

Custom Target

Custom Target allows customization of code to support various types of targets other than Hive. This node is similar to similar to the Custom Transformation node.

Prerequisite

Perform the following:

Navigate to the IW_HOME/opt/infoworks/conf/conf.properties file.
Set the extension path in the user_extensions_base_path configuration. For example, user_extensions_base_path=/opt/infoworks/extensions/.
Ensure that the Infoworks user has write access to the folder.
Restart the UI and Data Transformation services.

Registering Custom Target

Registering Custom Target is same as registering Custom Transformation except that you must select the Extension Type as Custom Target. For details see the Registering Custom Transformation section.

Adding Custom Target to Domain

Adding Custom Target to domain is same as adding Custom Transformation to domain. For details see the Adding Custom Transformation to Domain section.

Following are the steps to apply Custom Target node in pipeline:

Double-click the Custom Target node. The properties page is displayed.
Click Edit Properties, select the Extension Name as snowflake.
Set the following keys:
buildMode: overwrite or merge
tableName: table name of the snowflake target
naturalKeyColumns: comma-separated natural keys
sfConfFile: the configuration property file in the edge node which includes the connection details of snowflake.

Click Save.

NOTE: For any File System other than HDFS, include the scheme in the iw_dt_ext_prefix configuration in the conf.properties file. For example, for Azure Data Lake, set the following configuration in the conf.properties file: iw_dt_ext_prefix=wasb://

Python Custom Target

Data Transformation supports writing Custom Target logic in Python. Infoworks provides Python APIs which must be implemented to write a custom logic.

Creating Python Custom Target

Install python package in IW_HOME/dt/python_scripts/api-1.0.egg using the following command: python -m easy_install <path_for_api-1.0.egg>
Write custom target logic by implementing the Python API CustomTarget. To import, add the following statement to your python custom logic: from api.custom_target import CustomTarget
Example for custom target is available at IW_HOME/examples/pipeline-extensions/custom_target_example.py
Create .egg extension file for the python project.

NOTE: Use the Java APIs to apply transformation on the input datasets. Internally, py4j is used to communicate to Python custom logic. And, all the provided input data frames are in Java Object form.

Registering Python Custom Target

Navigate to Admin > External Scripts > Pipeline Extensions.
Click Add An Extension.

In the Add Pipeline Extension page, enter the following details:

Extension Type: Select Custom Transformation.
Execution Type: Select Python.
Name: A user-friendly name for the group of transformations under one project. For example, SampleExtension.
Folder Path: The path to the folder where the .egg file for the python project is saved. For example, /home/transformation/cust.egg.
Classes: The classes implementing the SparkCustomTransformation API which must be available as transformations within Infoworks.
Alias: A user-friendly alias name for the transformations. For example, Sample.
ClassName: A fully qualified class name in the <python_package>.<python_module>.<class_name> format. For example, io.infoworks.awb.extensions.sample.SparkCustomTfmSample.
You can click Add to add multiple pairs of Alias and Class Names.

NOTES:

Py4j and Pyspark packages must be installed on Python.
Custom transformation with Python runtime is only supported from Python v2.7 onwards.

Configurations

Add dt_scoket_port_range configuration in the pipeline advanced configuration to provide available port range (which will be internally used for socket communication). For example, 25810 : 25890. The default range is 25400 to 25500.
Add dt_socket_max_tries in pipeline advanced configuration to set the maximum number of tries to establish the socket communication. For example, 8. The default value is 10.
Set the Python path by adding following configuration to the IW_HOME/conf/conf.properties file python_custom_executable_path=<python_executable_path>

NOTE: If the above configuration is set, the path will be used for Python custom logic. If not set, the default Python version installed on that node will be used.

Snowflake Table

Infoworks supports Snowflake as a target for data transformation pipeline.

NOTE: This node is compatible only with Spark execution engine.

Prerequisites

Ensure the snowflake target data connection is configured. For the steps to configure data connection, see Target Data Connections.

NOTE: The snowflake configuration file is not supported from this release. User must now create a target connection for the Snowflake targets already configured.

Setting Snowflake Table Properties

Following are the steps to use snowflake target in pipeline:

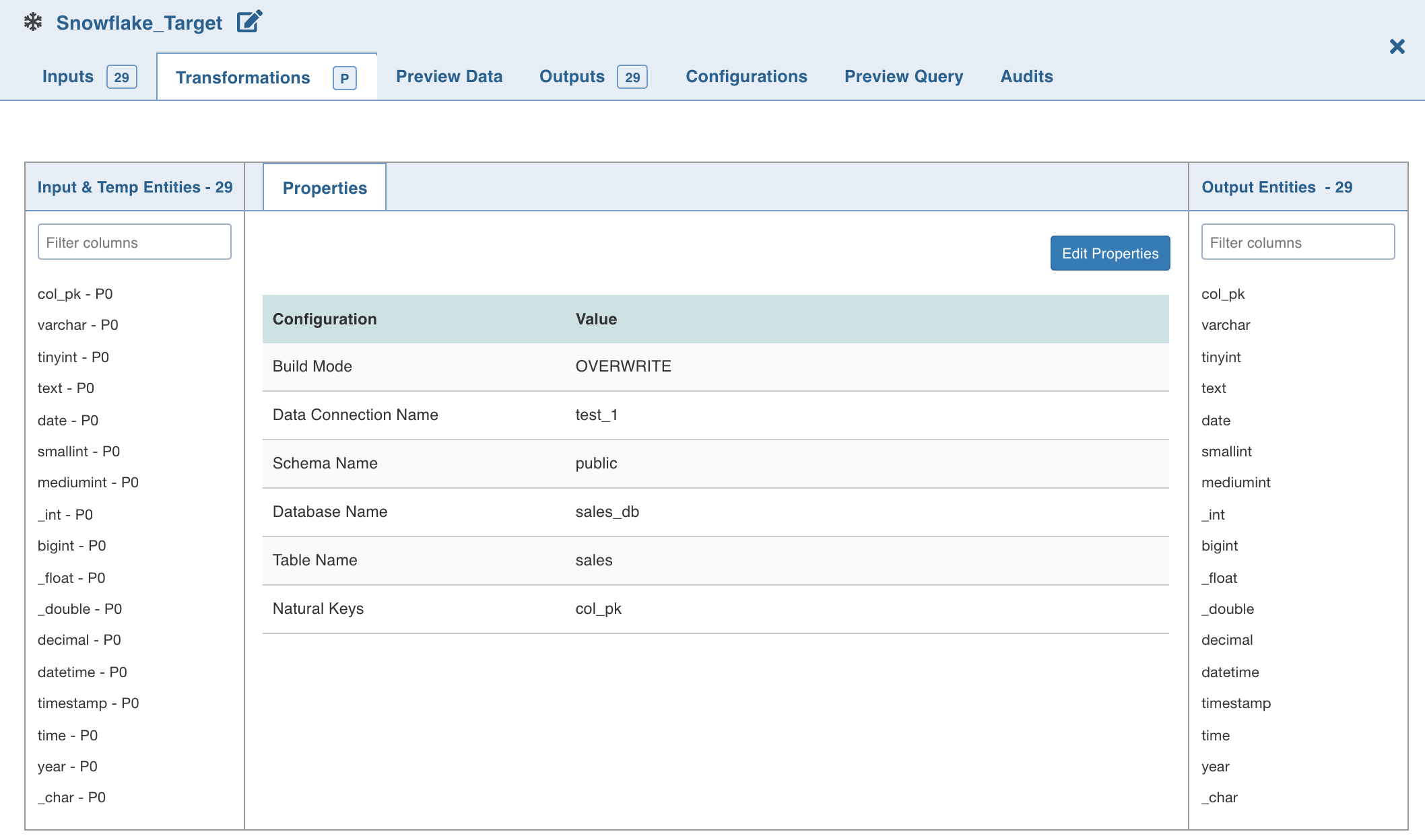

Double-click the Snowflake Target node. The properties page is displayed.
Click Edit Properties, and set the following fields:
Build Mode: The options include overwrite, append or merge

Overwrite: Drops and recreates the snowflake target.

Append: Appends data to the existing snowflake target.

Merge: Merges data to the existing table based on the natural key.

Data Connection Name: Data connection to be used by the snowflake target
Schema Name: Schema name of the snowflake target
Database Name: Database name of the snowflake target
Table Name: Table name of the snowflake target
Natural Keys: The required natural keys for the snowflake target
Click Save.

Limitation

DOUBLE, FLOAT, DOUBLE PRECISION, and REAL columns are displayed as FLOAT, but stored as DOUBLE. This is a known issue in Snowflake.

Snowflake Spark Configurations

Snowflake Spark connector is used to write data to a table in Snowflake. Spark connector writes the data to a temporary location and then uses the Snowflake COPY command to load the data to a table in Snowflake. Snowflake deletes the intermediate data after loading to the Snowflake table.

Snowflake Intermediate Storage

The temporary location where Snowflake writes the intermediate data can be internal or external storage. The internal storage is created and managed by Snowflake while the external storage is created and managed by the user. For more details on Snowflake internal and external storage, see Data Transfer.

The Snowflake Spark connector uses the Snowflake connection details to write to the Snowflake.

You can use the following configuration to set additional options to the connector.

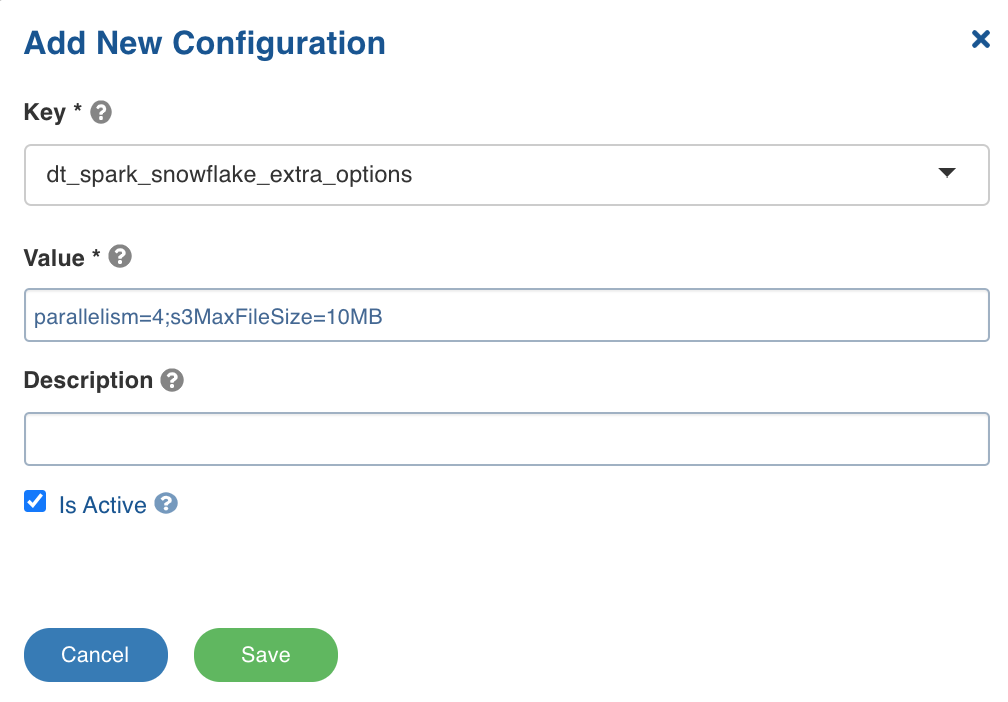

dt_spark_snowflake_extra_options: The configuration to set additional options to the Snowflake connector using semicolon-separated (;) values. For example, the value can be parallelism=4;s3MaxFileSize=10MB.

You can set this key in the pipeline Settings > Advanced Configurations > Add Configuration section.

Following are some of the Snowflake Spark connector additional configurations:

parallelism: The size of the thread pool to use for data upload and download between Snowflake and Spark. The default value is 4.
s3MaxFileSize: The size of the file used when moving data from Snowflake to Spark. The default value is 10MB.
continue_on_error: The option to control whether the COPY command must abort if the data is invalid. The values include ON and OFF.
truncate_table: The option for Spark connector to drop and create a new table in the case of overwrite mode. To retain the schema of the target table, set the truncate_table=on.

For other options, see Snowflake Additional Options.

NOTE Infoworks currently uses the default options provided by the Spark Snowflake connector. If required, you can overwrite the default value supported by the connector by setting the appropriate values in the dt_spark_snowflake_extra_options configuration.

Best Practices

For best practices, see Data Transformation Target Configurations.

Reference Video

The demo video of Snowflake Target is available here.

Redshift Table

Amazon Redshift is a cloud-based, petabyte-scale data warehouse service by Amazon Web Services (AWS). For more details, see Redshift Documentation.

Redshift is supported as a target in transformation pipelines. Data can be exported to Redshift, and kept incrementally synchronized via a fast and parallelized process. Infoworks DataFoundry also optimizes the Redshift table for query patterns through user-configurable settings for distribution and sort styles.

Prerequisites

Ensure that the Redshift target data connection is configured. For details, see Redshift Target Data Connection.
Ensure that read/write permissions to Amazon S3 and Redshift are granted for Databricks Virtual Private Cloud (VPC).5tr42
Ensure that the pipeline is created using Spark as Execution Engine.

Setting Redshift Target Properties

Following are the steps to use Redshift target in pipeline:

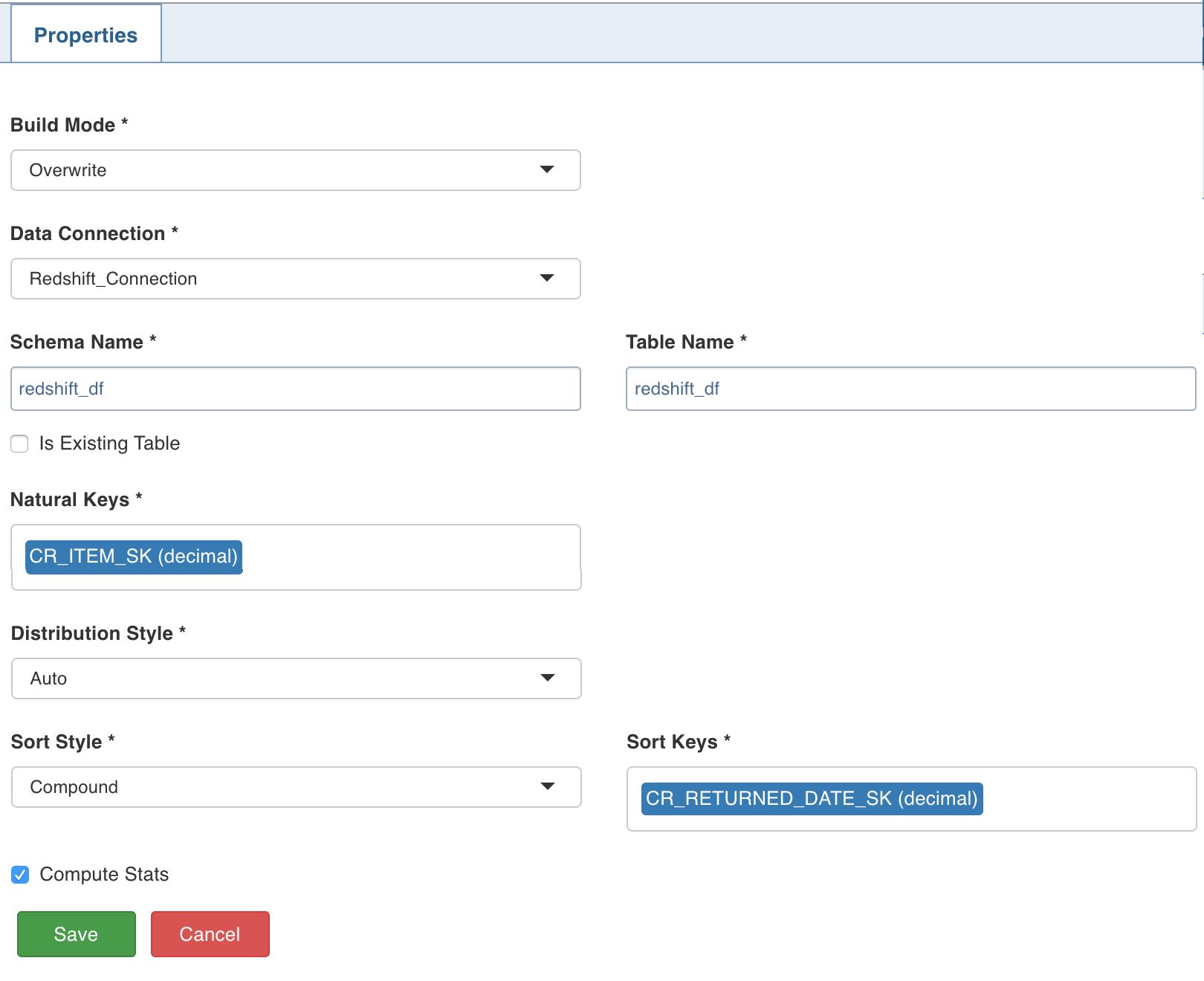

Double-click the Redshift Table node. The properties page is displayed. Click Edit Properties and set the following fields:

Build Mode: The options include overwrite, append and merge.
Overwrite: Drops and recreates the Redshift target.
Append: Appends data to the existing Redshift target.
Merge: Merges data to the existing table based on the natural key.
Data Connection Name: The name for the data connection to be used by the Redshift target.
Schema Name: Schema name of the Redshift target.
Table Name: Table name of the Redshift target.
Is Existing Table: When this option is enabled, the existing table works as an external table to Infoworks DataFoundry. The table will not be created, dropped or managed by Infoworks DataFoundry.
Natural Keys: The required natural keys for the Redshift target.
Distribution Style: The distribution style of data across the nodes in AWS Redshift. The options include Even, All, Key and Auto. The default value is Auto. For more details, see Distribution Styles.
Sort Style: The order in which rows in a table are stored and used, to improve query performance. The options include Compound and Interleaved. For more details, see Distribution Styles.

NOTE: An Interleaved Sort Key can use a maximum of eight columns.

Sort Keys: The columns for the corresponding sort style.
Compute Stats: The option to execute the ANALYZE statement after writing to table. If enabled, ANALYZE schema_name.table_name will be run on the Redshift. Executing the ANALYZE statement updates the statistical metadata that the query planner uses to choose optimal plans. Amazon Redshift refreshes statistics automatically in the background, and the ANALYZE command can be run explicitly. If the user chooses to explicitly run and if Compute Stats is enabled, the ANALYZE command will be run before running queries.

Click Save.

For details on setting the Redshift data connection, see Redshift Target Data Connections.

Limitation

The Auto Distribution Style does not work with Interleaved Sort Style.

Cosmos DB Target

Data transformation pipelines can create and incrementally synchronize data models and tables to Azure CosmosDB. Azure CosmosDB is Microsoft’s globally-distributed, multi-model database service for managing data at planet-scale.

Following are the steps to apply Cosmos DB Target node in pipeline:

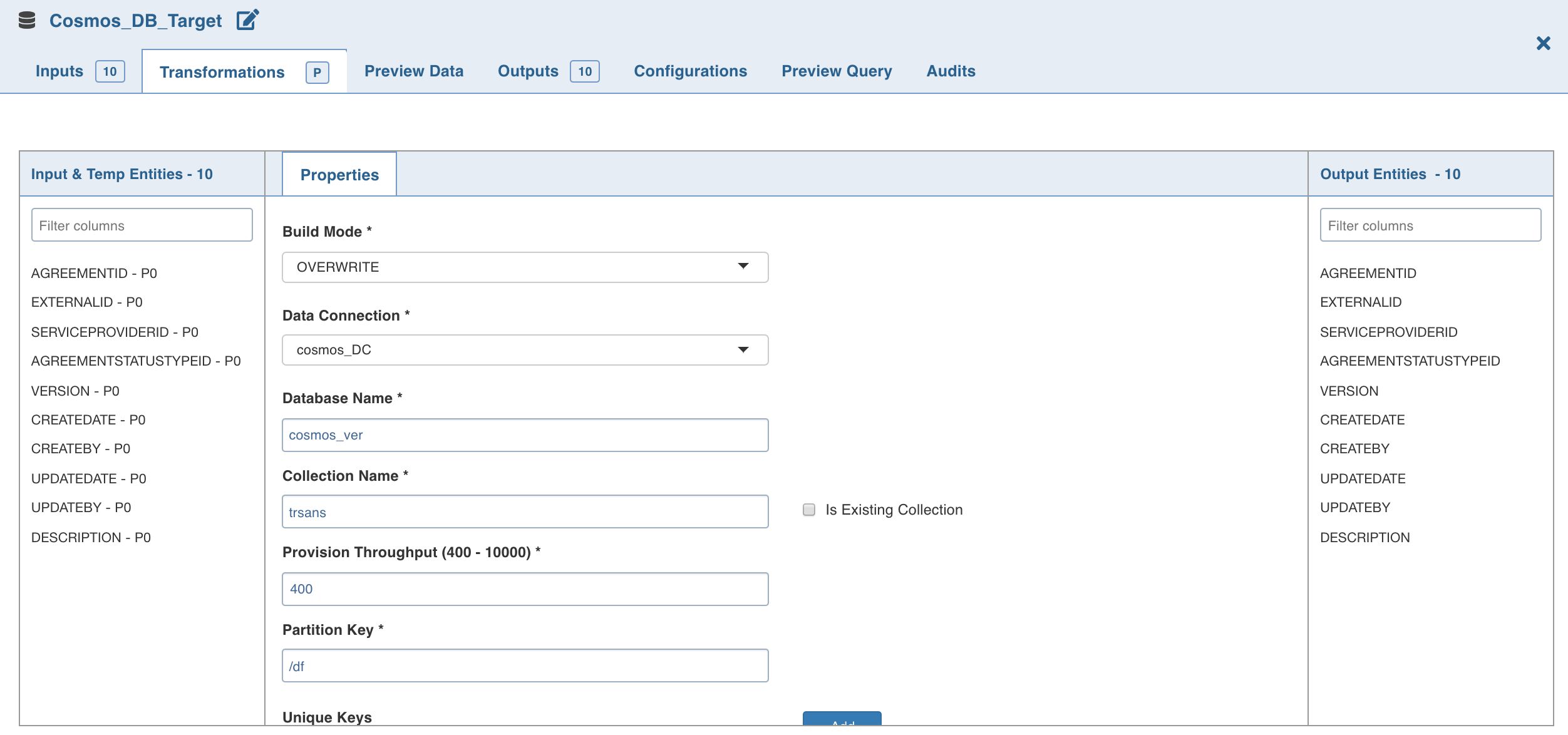

Double-click the Cosmos DB Target node. The Properties page is displayed.
Click Edit Properties.

Properties

Build Mode: The options include overwrite, append and merge.

Overwrite: Drops and recreates the Cosmos DB collection.

Append: Appends data to the existing Cosmos DB collection.

Merge: Merges data to the existing Cosmos DB collection.

Data Connection: Data connection to be used by the Cosmos DB target.
Database Name: Database name of the Cosmos DB target.
Collection Name: Collection to which the documents must to be written.
Is Existing Collection: Enable this option if the documents must be appended/merged to the existing/provided collection. If unchecked, a new collection will be created.
Provision Throughput (400 - 10000): Provision throughput for the container created. The default value is 400.
Partition Key: The partition key on the Cosmos DB collection to be created. Partition key must be in path format for the JSON document which is to be written to Cosmos DB, for example, /employee/employee_age.
Unique Keys: A unique key policy is created when an Azure Cosmos container is created. Unique keys ensure that one or more values within a logical partition is unique. Unique key must be in the path format for the JSON document which is to be written to the Cosmos DB, for example, /employee/employee_age.

NOTES:

ID column is mandatory for merge mode.
ID column must only be string.
ID column must not be present for append mode.

Following are the datatypes supported for Cosmos DB (same as JSON datatypes):

String: Double-quoted Unicode with backslash escaping.
Number: Double-precision floating-point format in JavaScript. Exponential notation and integers are supported. Floating point numbers, decimal datatype in Hive, and numbers as strings are not supported.
Boolean: True or false.
Array: Ordered sequence of values.
Value: This can be a string, a number, true or false, null, etc.
Object: Unordered collection of key- value pairs (Example: Struct in hive)
Null: Empty value
Date time in Cosmos: Azure Cosmos DB does not support localization of dates. So, DateTimes must be stored as strings. The recommended format for DateTime strings in Azure Cosmos DB is YYYY-MM-DDThh:mm:ss.sssZ which follows the ISO 8601 UTC standard.
Hive Timestamp and Date is written as Unix Timestamp in Cosmos DB.

Azure SQL Datawarehouse Table

Infoworks supports Azure SQL Datawarehouse as a target for data transformation pipelines.

Azure SQL Data Warehouse is a cloud-based enterprise data warehouse that leverages Massively Parallel Processing (MPP) to quickly run complex queries across petabytes of data and can be used as a key component of a big data solution. Infoworks Data Transformation pipelines can now incrementally export data to Azure DW as a new Target type.

NOTE: This functionality is compatible only with the use of Spark as an execution engine.

Prerequisites

Ensure the Azure SQL datawarehouse target data connection is configured. For the steps to configure data connection, see Pipeline Targets.
Ensure a database master key for the Azure SQL datawarehouse is available.
To allow Infoworks to reach SQL datawarehouse, it is recommended to set Allow access to Azure services to ON on the firewall pane of the SQL Datawarehouse server through Azure portal.
Ensure that when creating a pipeline that is expected to export data to Azure DW, that it is configured with the Spark Execution Engine option

Setting Azure SQL Datawarehouse Target Properties

Following are the steps to use Azure SQL Datawarehouse targets in pipelines:

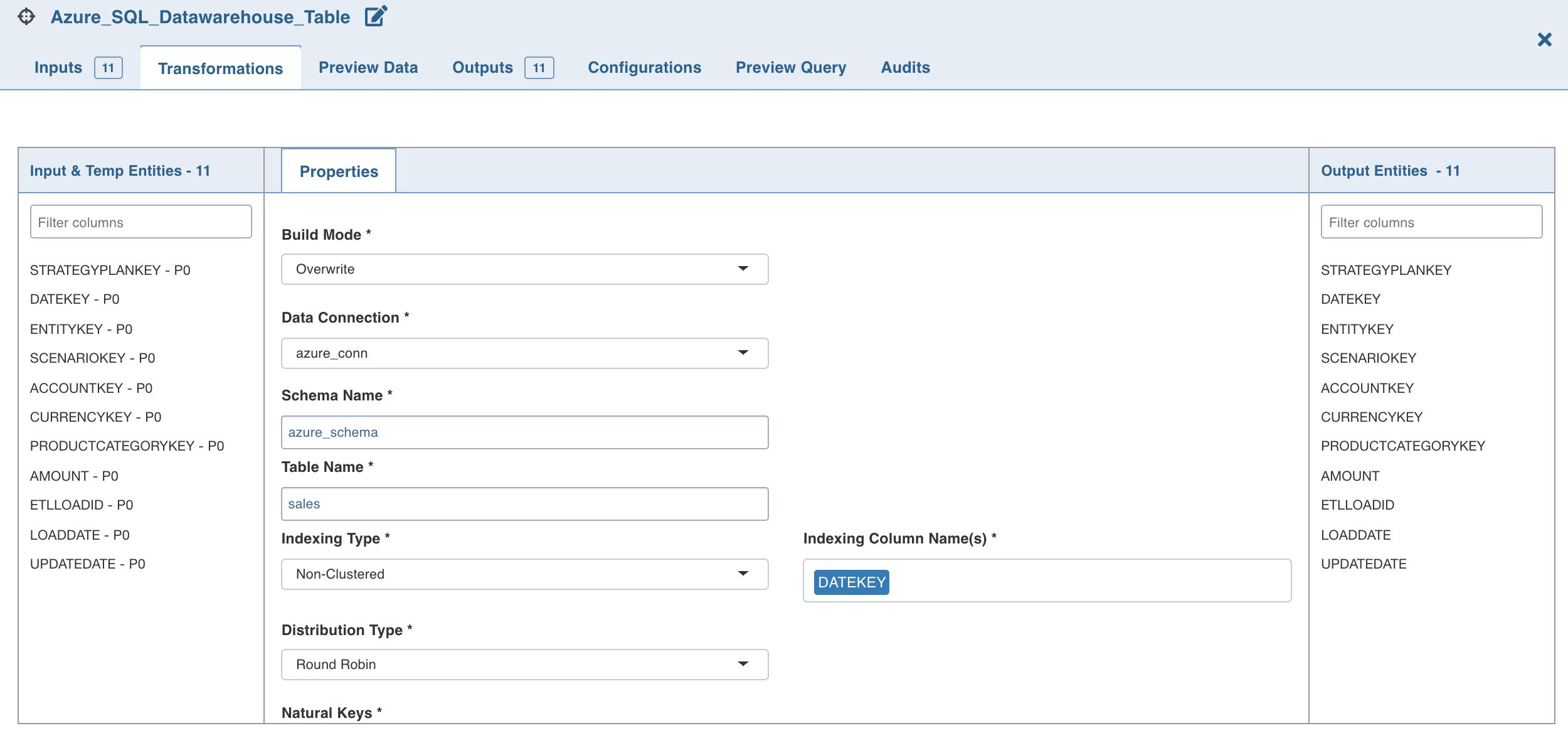

Double-click the Azure SQL Datawarehouse Table node. The properties page is displayed.

Click Edit Properties, and set the following fields:
Build Mode: The options include overwrite, append or merge

Overwrite: Drops and reloads/recreates the Azure SQL Datawarehouse target data. In case of existing table, the data will be truncated and loaded. In case of Infoworks created table, the table will be dropped and a new table will be created.

Append: Appends data to the existing Azure SQL Datawarehouse target table.

Merge: Merges data to the existing target table in Azure Datawarehouse based on the natural key.

Data Connection Name: Data connection to be used by the Azure SQL Datawarehouse target
Schema Name: Name of the schema in the Azure Datawarehouse where the target table will be created.
Table Name: Name of the table in Azure Datawarehouse that will be the target for exported data.
Indexing Type: The indexing options include clustered columnstore index, clustered index and non-clustered index, and a non-index option - heap. For details, see Indexing tables in SQL Data Warehouse.
Distribution Type: Distribution methods for designing distributed tables. The options include hash, replication and round-robin. For details, see Guidance for designing distributed tables in Azure SQL Data Warehouse.
Natural Keys: The column(s) in the target table to be used as Natural Keys
Partition Column Name: The name of the column which will be used to partition the target table in Azure DW.
Partition Range: The range type. The options include left and right. For details, see Table partition options.
Boundary Values: The boundary points for partition (comma separated). Boundary values specify the maximum and minimum allowable values for the partition column in the Azure DW table.

NOTE: Boundary values must exactly match the partition column data type. For example, if the column data type is int, the boundary values can be 10,20,50,... If the column data type is date, the boundary values can be ‘11-12-2019’,’10-11-2020’,... If the column data type is string, the boundary values must be provided in single quotes (comma separated).

Click Save.

Last updated on
