Deploying Infoworks Edge Node for EMR

Prerequisites

EMR Version: 5.17.0
AWS Account ID of the customer to be whitelisted for accessing the Infoworks edge node.

Infoworks provides an Amazon Machine Image (AMI) of the edge node and Infoworks server software in a private marketplace library.

To obtain access to this AMI prior to proceeding with further steps, email the AWS Account ID of the account which will be used to access the Infoworks edge node image, to the Infoworks support team.

(Your Account ID will be displayed in the Amazon console My Account section.)

Infoworks support will enable access to AMI from the provided AWS Account ID. Once this is completed, you can proceed with further steps.

Procedure

Login to AWS Console.
Search for EC2 in Find Services in the AWS Console dashboard.

NOTE: Infoworks Secured AMI works only on Kerberos and In-Transit Encryption (TLS) type EMR Cluster.

Choose AMI

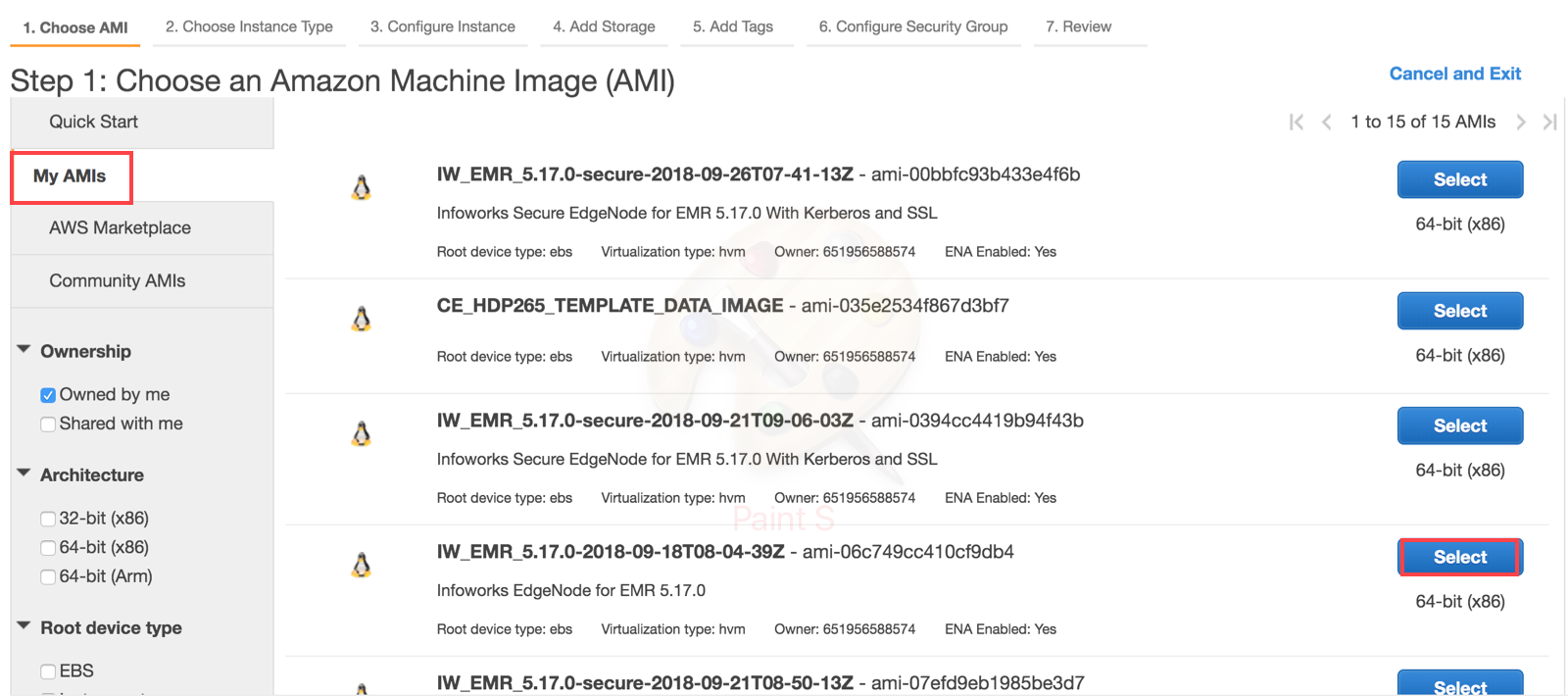

Select Launch Instance from the EC2 Dashboard. Select the image from My AMI Section.

NOTE: The AMI ID might be different for secured and unsecured edgenode - Unsecured: ami-06c749cc410cf9db4, Secured: ami-00bbfc93b433e4f6b.

If the AMIs are not available in the above screen, following is the alternate option to launch the AMI:

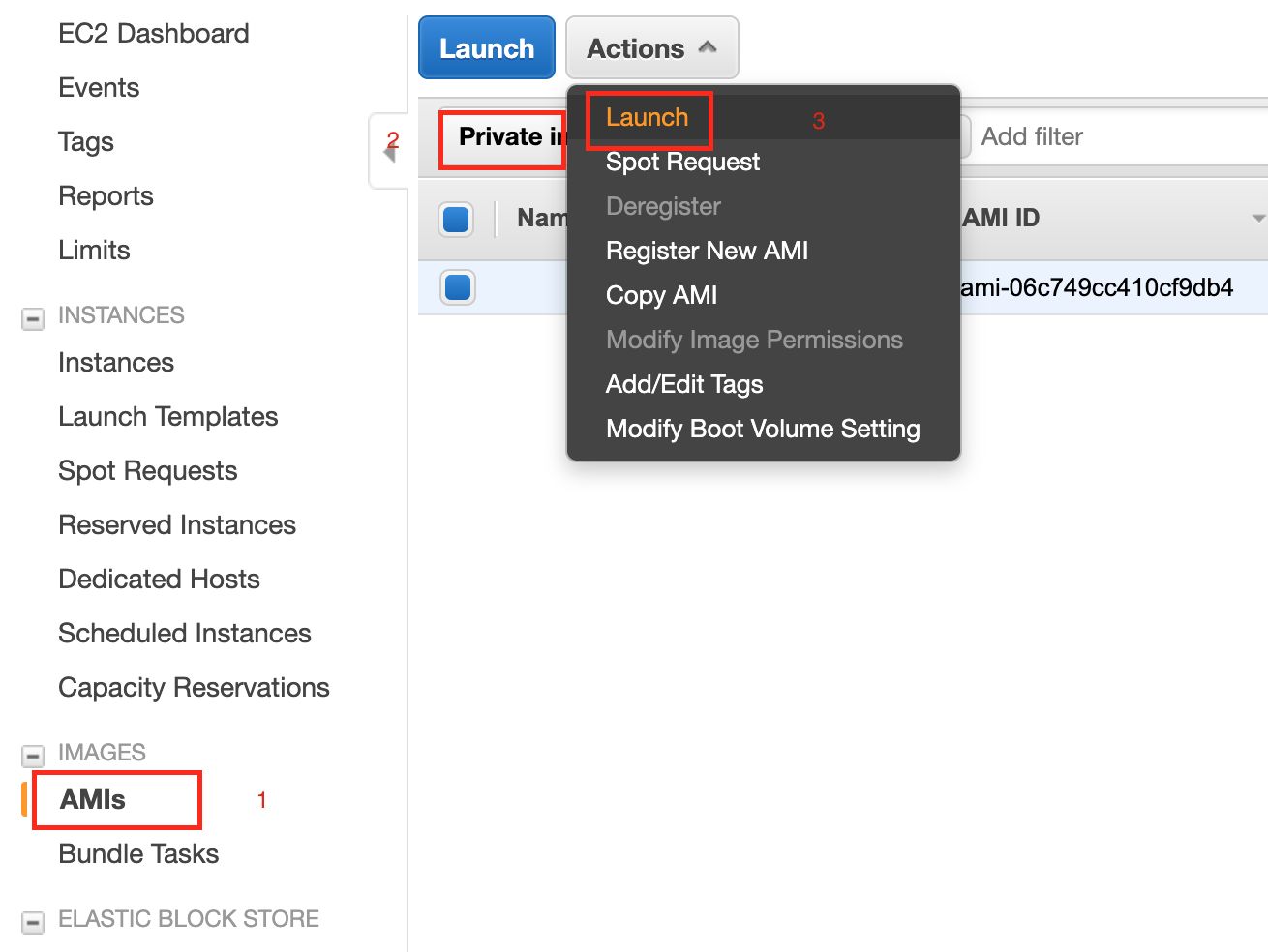

Open the EC2 dashboard.
Navigate to AMIs > Private Images.
Select Infoworks EMR AMI.

NOTE: The AMI ID might be different for secured and unsecured edgenode - Unsecured: ami-06c749cc410cf9db4, Secured: ami-00bbfc93b433e4f6b.

Click the Actions option and select Launch.

Choose Instance Type

Select the machine type for the Infoworks Edgenode. Minimum and recommended is m4.4xlarge.

Configure Instance

Number of Instance is 1.
Select the VPC and Subnet ID, similar to EMR Cluster.

Add Storage

Add Root volume Storage in GB. For example, 300 GB

Add Tags

Add naming convention or environment tags for the resource.

Configure Security Group

Create a new security group and allow IW Ports and SSH.

Review

In this section review the configurations and select existing key pair or create a new key pair and proceed with creation of Instance.

SSH to EdgeNode

The default user in ec2-user.

Switch to root user using the following commands:

sudo su
wget <link_to_download>
bash <script>

The following inputs will be required for unsecured cluster:

Masternode private IP/DNS
IW_Version, for example, 2.8.0-emr.

Perform sanity check by running the HDFS commands and Hive shell in the edge Node.

For the link to download, contact the Infoworks support team.

IMPORTANT: Ensure that you add the EdgeNode Security Group ID to allow all inbound traffic to EMR Security Group.
